IF pipe seam annealing machine

IF pipe seam annealing machine

Single power: 300-600KW

Operating frequency: 0.5-8KHz

The heating pipe diameter is not less than 45mm

Heating steel pipe wall thickness: 1-25mm

Pipe seam tracking range: ±15°

Welding seam annealing on line is widely used in the manufacture of oil transportation pipe and other high quality steel pipe.

It is an advanced technology in the production of high strength steel pipe, through the weld annealing online can eliminate welding

residual stress and improve the microstructure. Make the welding seam and its heat affected zone is consistent with the parent metal of

organization structure, the toughness and strength.

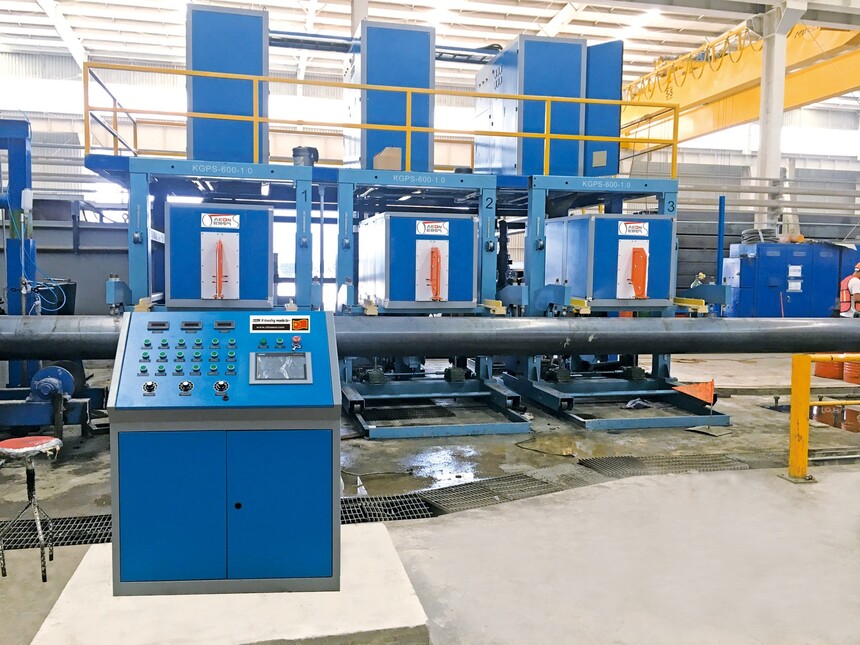

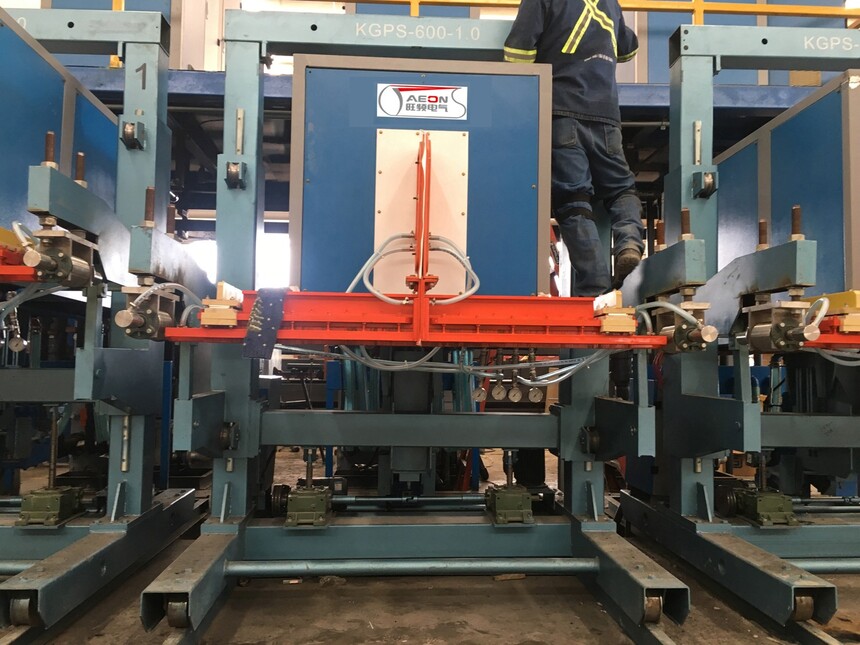

Exported 600KW IF pipe seam annealing equipment— Installation and working site
